General description

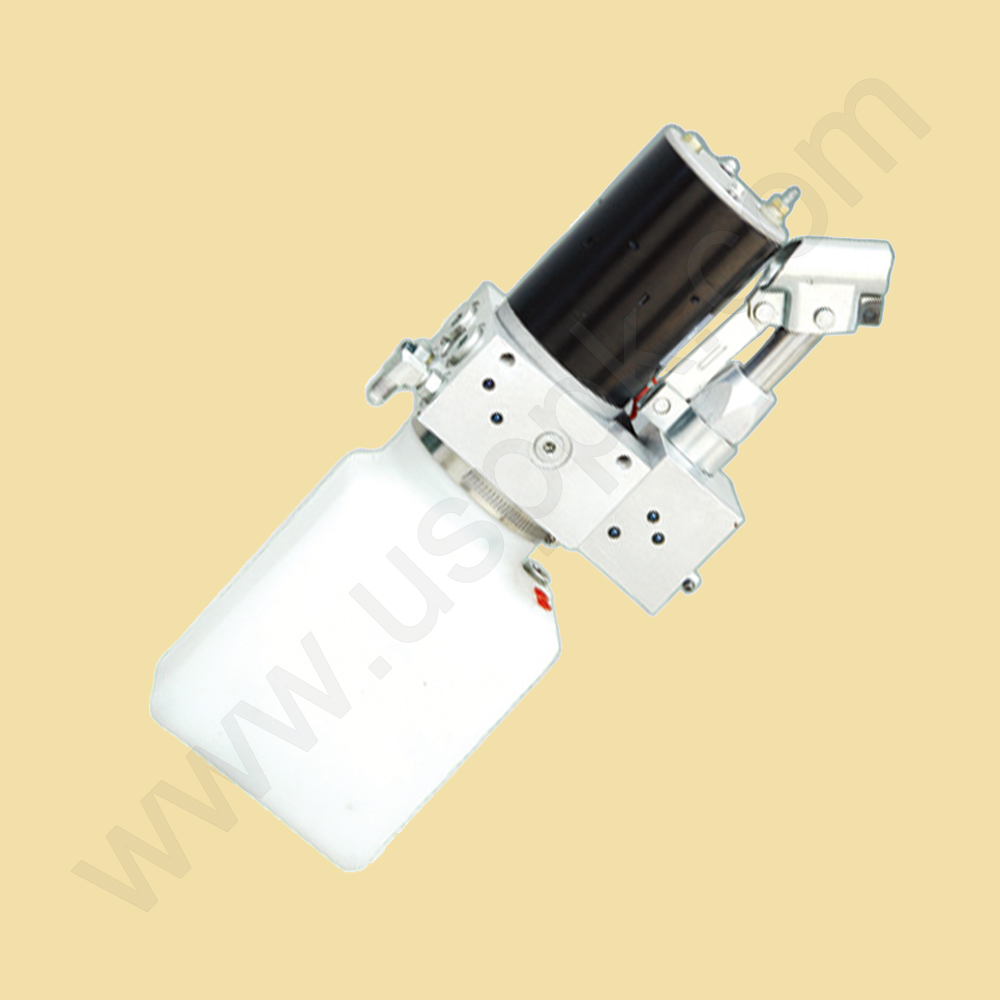

The power unit is designed exclusivly for lifting the disabled pepoles wheelchair when they are getting in or off a certain type of vehicles Equipped with a high pressure gear pump, a DC motor, a multifunctional manifold, valves and a tank ect,this power unit features power up gravity down function. Start the motor to lift the machine and the lowering movement is activated by the solenoid valve with the lowering speed controlled by the adjusting screw. A handpump is available for occasional power failture.
Outline Dimension
Model Specifications
| No. | Model | Motor Volt | Motor Power (KW) | Rated Speed (RMP) | Displacement (ml/r) | System Pressure (MPa) | Tank Capacity (L) |
|---|---|---|---|---|---|---|---|
| 1 | DYDD-0.57WAU-DWOB-30 | 12V DC | 0.8 | 4500 | 0.57 | 16 | 18 |
| 2 | DYDD-0.98XAU-DWOB-30 | 12V DC | 0.8 | 4500 | 0.98 | 16 | 2.4 |
| 3 | DYDD-1.27YAU-DWOB-30 | 12V DC | 0.8 | 4500 | 1.27 | 16 | 3.4 |
Remarks: Please consult our sales engineer for the different pump displacement, motor power or tank capacity.
