Power Units for Double-scissors Lift

Power Units for Double-scissors Lift

1. The duty of this power unit is S3, ie. 30 seconds on and 270 seconds off.
2. Clean all the hydraulic parts concerned before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of impurities. N46 hydraulic oil is recommended.
4. Oil changing is required after the initial 100 operation hours, afterwards once erery 3000 hours.
5. The power unit should be mounted vertically.

Category:

General description

Equipped with the zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independen ciruits, which are respectively for the main platform and subordinate platform of the double scissors lift. Two cut-off vavles are used for lowering the maching manually in case of power failure. By increasing the solenoid vavles, it is easy to get more independent circuits, which are used to control the corresponding cylinders.

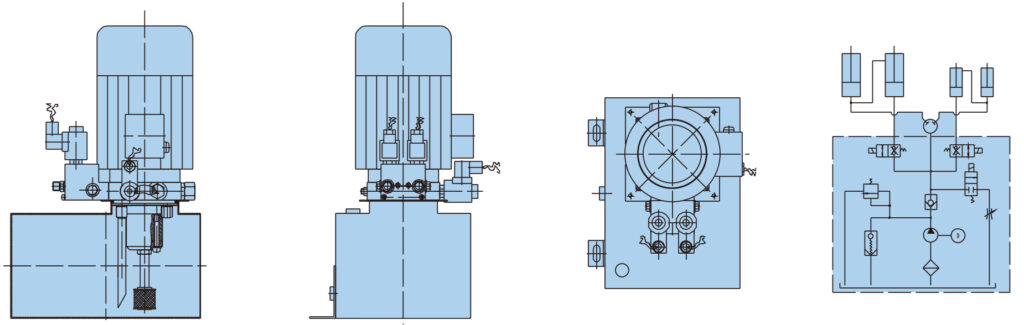

Outline Dimension

Model Specifications

No. Model Motor Volt Motor Power (kw) Displacement (ml/r) System Pressure (MPa) Rated Speed (RMP) Tank Capacity (L)
1 DYDD-2BCA-BWBC-17 220V AC 1.5 2 22 1400 8
2 DYDD-3DCA-BXBC-17 220V AC 1.5 3 20 1400 12
3 DYDD-2EEW-BXBC-17 380V AC 2.2 2 18 2800 14
4 DYDD-2FEW-BXBC-17 380V AC 2.2 2 15 2800 16
5 DYDD-3FEW-BXBC-17 380V AC 2.2 3 10 2800 16

Remarks: Please consult our sales engineer for the different pump displacement, motor power or tank capacity.
