1.Product Introduction
This diagnostic tool is a powerful car scan tool.It can read/clear codes,Text & Graph Live data for all vehicle systems including Engine,Transmission,Chassis and Safety control system,Body control system,Communication and Entertainment system.Support Reset function of Oil Lamp,EPB,DPF,SAS,TPMS,Sunroof,Suspension,Gearbox,AFS.And do BAT service,IMMO Key Programming,ABS Bleeding,Injector Coding,Throttle Adaptation,Gear Learning.
Advantages
A. 2-in-1 diagnostic tool suitable for 12V cars, SUVs, commercial vehicles, light trucks
and 24V trucks, buses, etc.
B. Full system full functions diagnostic, include full OBD-2 functions.
C. 28+ reset functions, ECU Coding and programming, active test, remote diagnoses,
Health Report Generate & Share & Print.
D. Cover 10,000+ models, Refresh Hidden Features, support WiFi and Bluetooth 5.0.
E. BI-DIRECTIONAL CONTROL (Active Test)
Features
A. Full System Diagnostic
ABS System, Engine System, SAS System , TPMS System , IMMO System , Battery System, Oil Service System, SRS System, DPF System, Air Conditioning System,Transmission System, etc
B. Full Functions Diagnostic
Read control unit information, Read DTCs, Clear DTCs, Read data-stream, Action test , AF Adjustment, Read frozen frame, Coding match , initialization and More.
C. 28+ Reset Functions
Oil Reset, Elec. Throttle Adaption, IMMO Service, Injector Coding, Break-pad Reset,Steering Angle Reset, ABS Bleeding, AFS Reset, Battery Matching, A/T Learning,DPF Regeneration,EGR Adaption, TPMS Reset, Sunroof Initialization, Suspension Matching, Gear Learning, Airbag Reset, ODO Reset, etc.
D. Others
With 12 in 1 Screen Live data Graph, Active Test, ECU Coding, Diagnostic Feedback,Remote Diagnosis, One-Click Generate Health Report, One-Click identify VIN,Online Repair Resources etc.
Vehicle Model
2.Components & Controls
(1) Display
(2) Power Key
1.Press and hold for 3 seconds to turn on the device;
2.Press and hold for 3 seconds again, it will pop-up a menu to select options: Shutdown or Restart;
3.Press and hold for 8 seconds, the device will force to restart again;
4.Press once to activate the device
(3)Type C Charging Slot: connect the supplied charger for charging
(4) use Port: Reserved for add-on modules and other devices with similar port.
(5)Rear Camera
(6)Speaker
(7)Backplane
(8)Adjustable Kickstand: Flip out it to 7 SO-degree angle and work comfortable at your desk, or hang it on automotive part.
(9)Rubber Protection Sheet
Covered models: Covering more than 100 brands and 10,000+ vehicle models.
Operating System: Android 10
WiFi: WLAN 802.11 b/g/n
Oscilloscope Module: optional
SIM CARD: support
Memory: 4G
Storage: 128G
Battery Capacity: 6300mAh
Charger: Type-C charging 5V3A
Touch Screen: 10.1inch, IPS 1280*800
Camera: Rear camera 8.0MP
Network: Wi-Fi, WLAN 802.11 b/g/n
Bluetooth: Bluetooth 5.0
Language Support 24+ languages
Certification SGS, FCC, IC, CE, RoHs, etc.
Working Temperature: 32 °F ~ 122 °F (0°c ~ so0c)
Storage Temperature: -4 °F ~ 140 °F (-20°c ~ 60°C)
3.Package

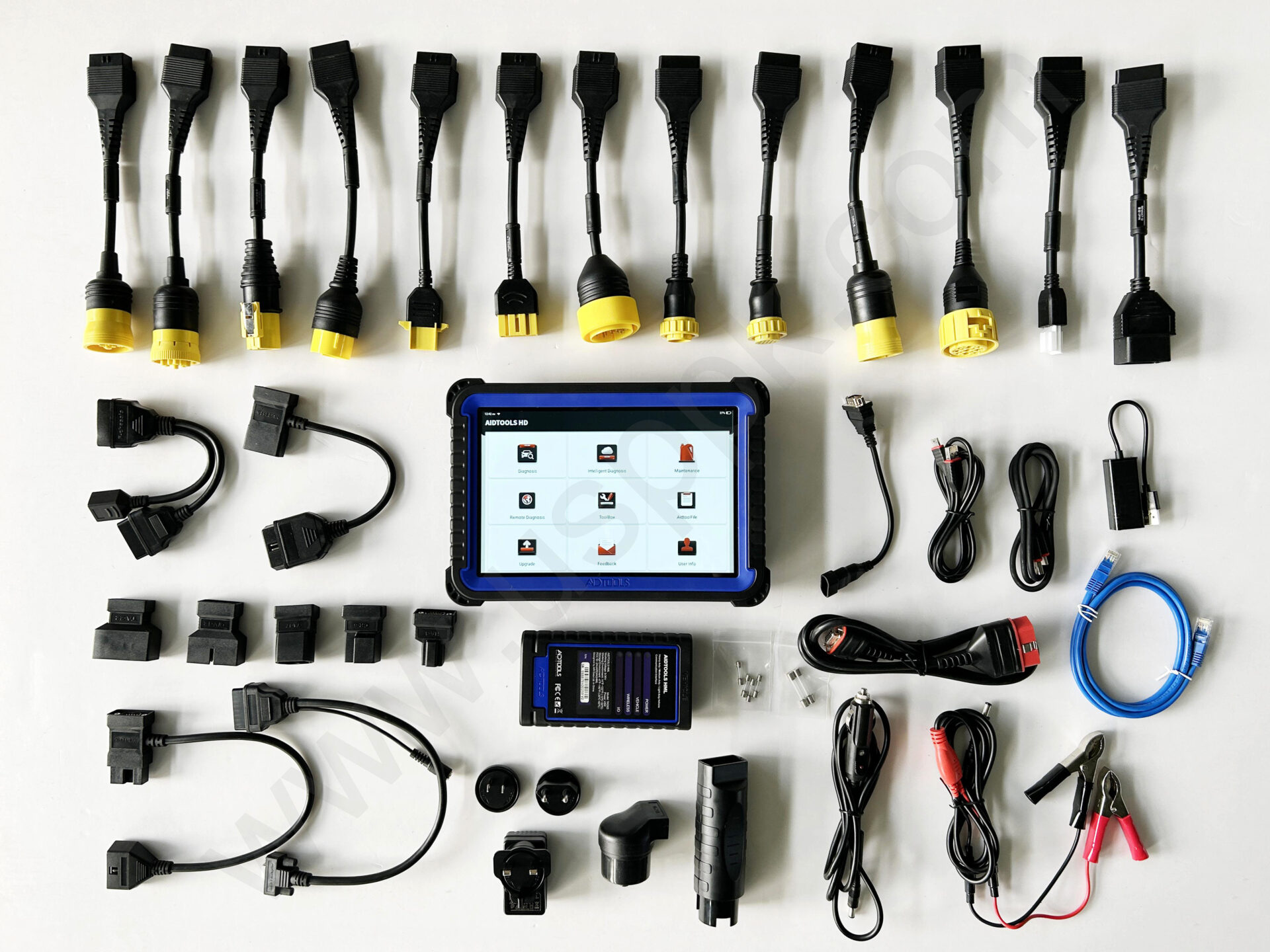

3.1 Packing List
| No. | Name | Quantity |
|---|---|---|
| 1 | AIDTOOLS Platinum HD | 1 PC |
| 2 | AIDTOOLS HML | 1 PC |
| 3 | Diagnostic Cable | 1 PC |
| 4 | Data Cable(Type A USB to mini) | 1 PC |
| 5 | OBD-9 | 1 PC |
| 6 | OBD-6 | 1 PC |
| 7 | CAT-9 | 1 PC |
| 8 | HD-OBD-16 | 1 PC |
| 9 | HD-BENZ-14 | 1 PC |
| 10 | IVECO-30 | 1 PC |
| 11 | IVECO-38 | 1 PC |
| 12 | MAN-12 | 1 PC |
| 13 | MAN-37 | 1 PC |
| 14 | PAD4HD-RENAULT-12 | 1 PC |
| 15 | ISUZU-20 | 1 PC |
| 16 | 3-in-1 Charger (Matched with | 1 PC |
| US. UK. and European plugs) | ||
| 17 | Charging Cable | 1 PC |
| 18 | Packing List | 1 PC |
| 19 | Password Letter | 1 PC |
