Features:Pump group CBZ collects the gear pump, the motor, the shaft coupling is installedto flang in the integrative products. The main purpose is to reduce users’ trouble. Alwaysbecome and offer to users as a kind of motive force.

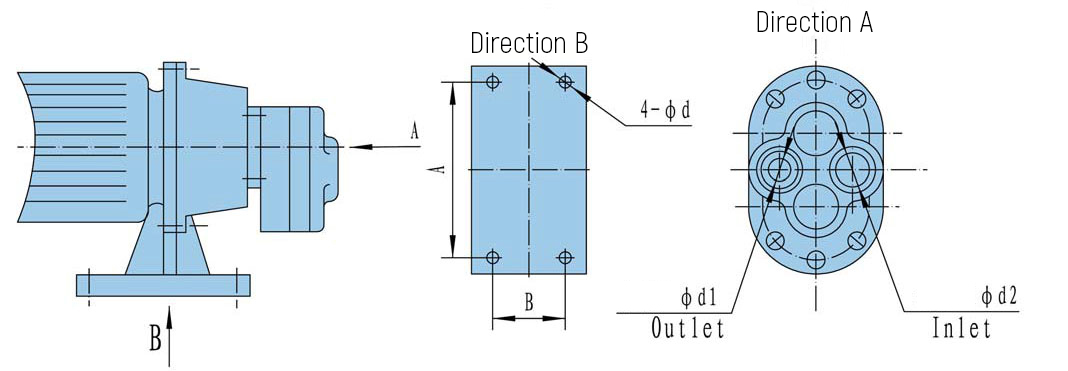

Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Base Size Connection | Base Size Connection | Power (KW) | Rotating Speed (r/min) | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 Hole φ d | A*B Gitch-row | 4 Hole φ d | A*B Gitch-row | ||||||
| 1 | CBZ-2.5 | 2.5 | 2.5 | 4-φ11 | 125*88 | Z 3/8″ | Z 3/8″ | 0.18 | 1450 |
| 2 | CBZ-4 | 4.0 | 2.5 | 4-φ11 | 125*88 | Z 3/8″ | Z 3/8″ | 0.25 | 1450 |
| 3 | CBZ-6 | 6.0 | 2.5 | 4-φ11 | 125*88 | Z 3/8″ | Z 3/8″ | 0.37 | 1450 |
| 4 | CBZ-10 | 10.0 | 2.5 | 4-φ11 | 125*88 | Z 3/8″ | Z 3/8″ | 0.55 | 1450 |
| 5 | CBZ-16 | 16.0 | 2.5 | 4-φ11 | 125*88 | Z 3/4″ | Z 3/4″ | 0.75 | 1450 |
| 6 | CBZ-20 | 20.0 | 2.5 | 4-φ11 | 125*88 | Z 3/4″ | Z 3/4″ | 1.1 | 1450 |
| 7 | CBZ-25 | 25.0 | 2.5 | 4-φ11 | 125*88 | Z 3/4″ | Z 3/4″ | 1.1 | 1450 |
| 8 | CBZ-32 | 32.0 | 2.5 | 4-φ11 | 125*88 | Z 3/4″ | Z 3/4″ | 1.5 | 1450 |
| 9 | CBZ-40 | 40.0 | 2.5 | 4-φ13 | 220*210 | Z 1″ | Z 3/4″ | 2.2 | 1450 |
| 10 | CBZ-50 | 50.0 | 2.5 | 4-φ13 | 220*210 | Z 1″ | Z 3/4″ | 2.2 | 1450 |
| 11 | CBZ-63 | 63.0 | 2.5 | 4-φ13 | 220*210 | Z 1″ | Z 3/4″ | 3 | 1450 |
