Feature: Pressure compensation pump, reversible work, small-displacement, small appearance, oilrelief inside and supply oil.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.

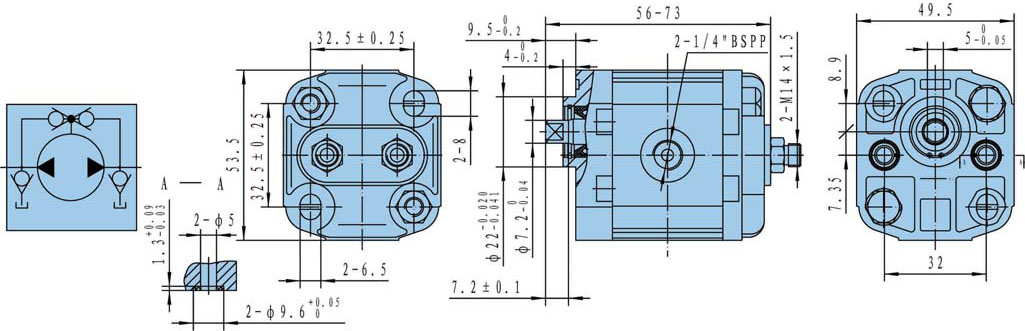

Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBTS2-G0.17Q | 0.17 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.41 |
| 2 | CBTS2-G0.25Q | 0.25 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.41 |
| 3 | CBTS2-G0.45Q | 0.45 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.43 |
| 4 | CBTS2-G0.57Q | 0.57 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.43 |
| 5 | CBTS2-G0.76Q | 0.76 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.45 |
| 6 | CBTS2-G0.98Q | 0.98 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.47 |
| 7 | CBTS2-G1.27Q | 1.27 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.48 |
| 8 | CBTS2-G1.52Q | 1.52 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 94 | 0.5 |
| 9 | CBTS2-F2.30Q | 2.30 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 94 | 0.55 |
