Features:Pressure compensation pump, high working pressure, small-displacement, small appearance.
Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances,machine tools, machines.

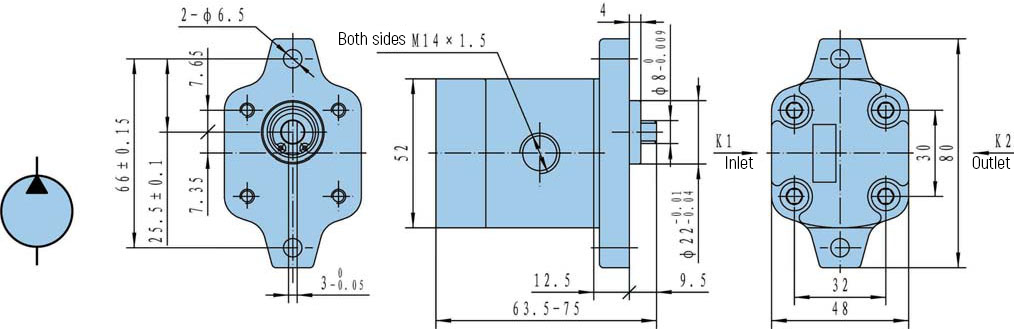

Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBTQ-G0.17F | 0.17 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.45 |
| 2 | CBTQ-G0.25F | 0.25 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.45 |
| 3 | CBTQ-G0.45F | 0.45 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.47 |
| 4 | CBTQ-G0.57F | 0.57 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.47 |
| 5 | CBTQ-G0.76F | 0.76 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.49 |
| 6 | CBTQ-G0.98F | 0.98 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.51 |
| 7 | CBTQ-G1.27F | 1.27 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.52 |
| 8 | CBTQ-G1.52F | 1.52 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 94 | 0.54 |
| 9 | CBTQ-F2.30F | 2.30 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 94 | 0.59 |
