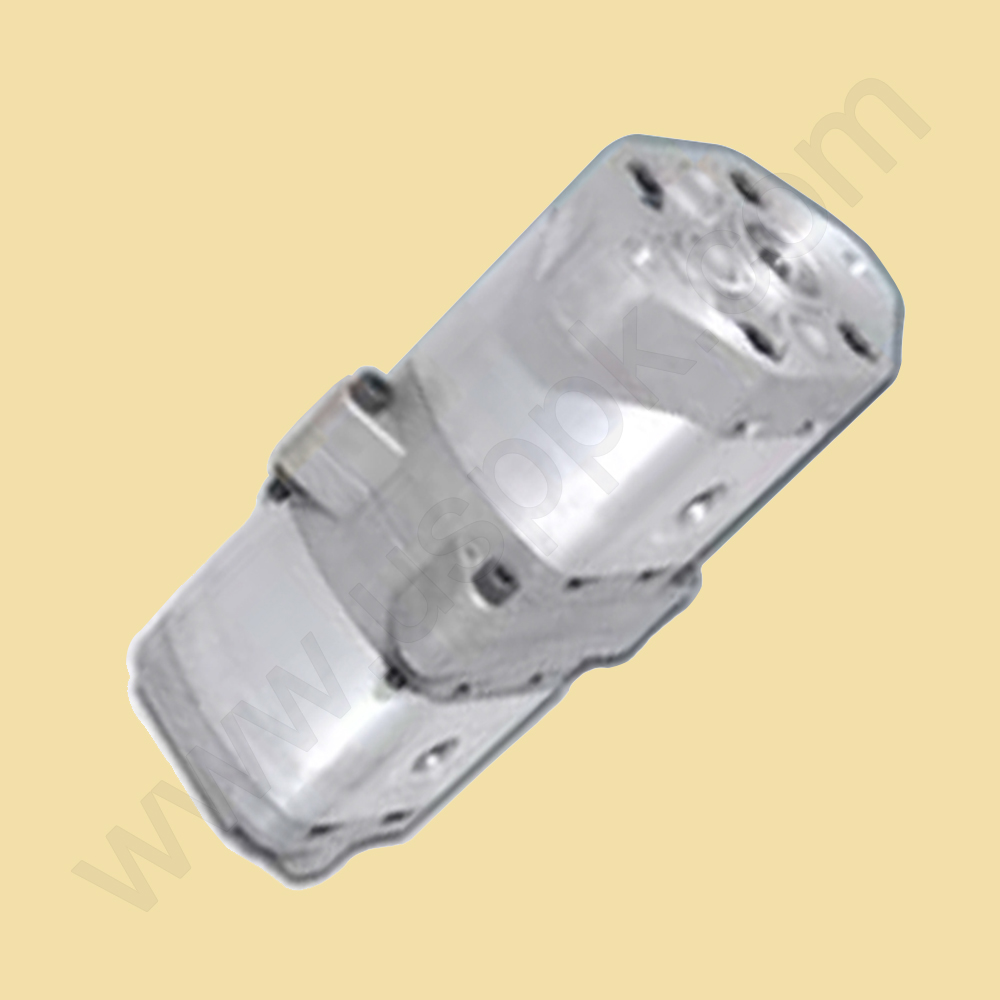

Features:Pressure compensation two-way flow pump, high working pressure, small-displacement,small appearance.
Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances,machine tools, machines.

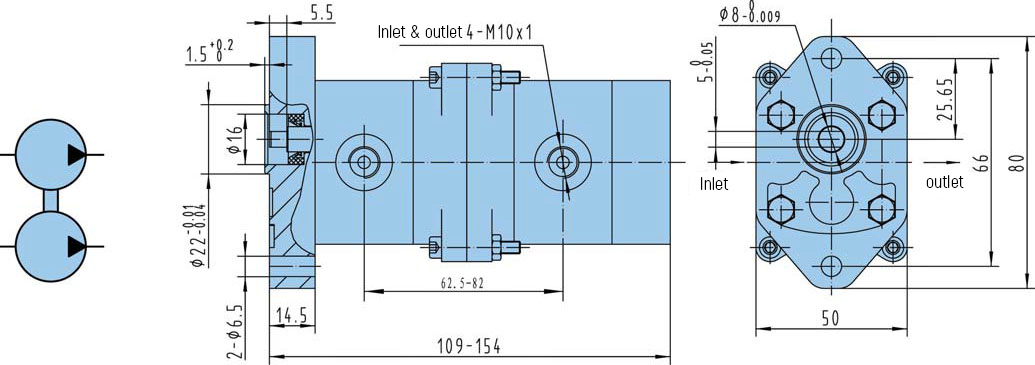

Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBTNL-G0.17/* | 0.17/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.53 |
| 2 | CBTNL-G0.25/* | 0.25/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.53 |
| 3 | CBTNL-G0.45/* | 0.45/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.55 |
| 4 | CBTNL-G0.57/* | 0.57/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.55 |
| 5 | CBTNL-G0.76/* | 0.76/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.57 |
| 6 | CBTNL-G0.98/* | 0.98/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.59 |
| 7 | CBTNL-G1.27/* | 1.27/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.6 |
| 8 | CBTNL-G1.52/* | 1.52/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 94 | 0.62 |
| 9 | CBTNL-F2.30/* | 2.30/* | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 94 | 0.68 |
