Features:Pressure compensation two-way flow pump, high working pressure, small-displacement,small appearance.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.

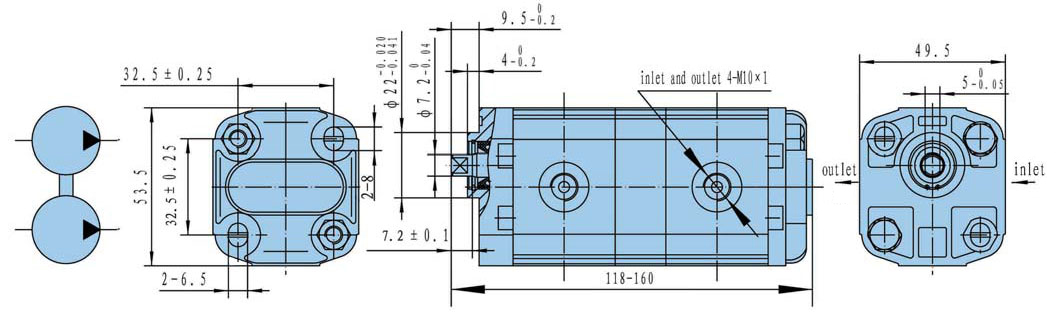

Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBTL-G0.17*F | 0.17/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.56 |
| 2 | CBTL-G0.25*F | 0.25/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 88 | 0.56 |
| 3 | CBTL-G0.45*F | 0.45/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.58 |
| 4 | CBTL-G0.57*F | 0.57/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 90 | 0.58 |
| 5 | CBTL-G0.76*F | 0.76/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.6 |
| 6 | CBTL-G0.98*F | 0.98/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.62 |
| 7 | CBTL-G1.27*F | 1.27/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 92 | 0.63 |
| 8 | CBTL-G1.52*F | 1.52/* | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 94 | 0.65 |
| 9 | CBTL-F2.30*F | 2.30/* | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 94 | 0.7 |
