CBTD-G Gear Pump

Features:Pressure compensation pump, high working pressure, medium displacement.

Application:Mainly used in engineering machinery, mining machinery, building machineryand so on.

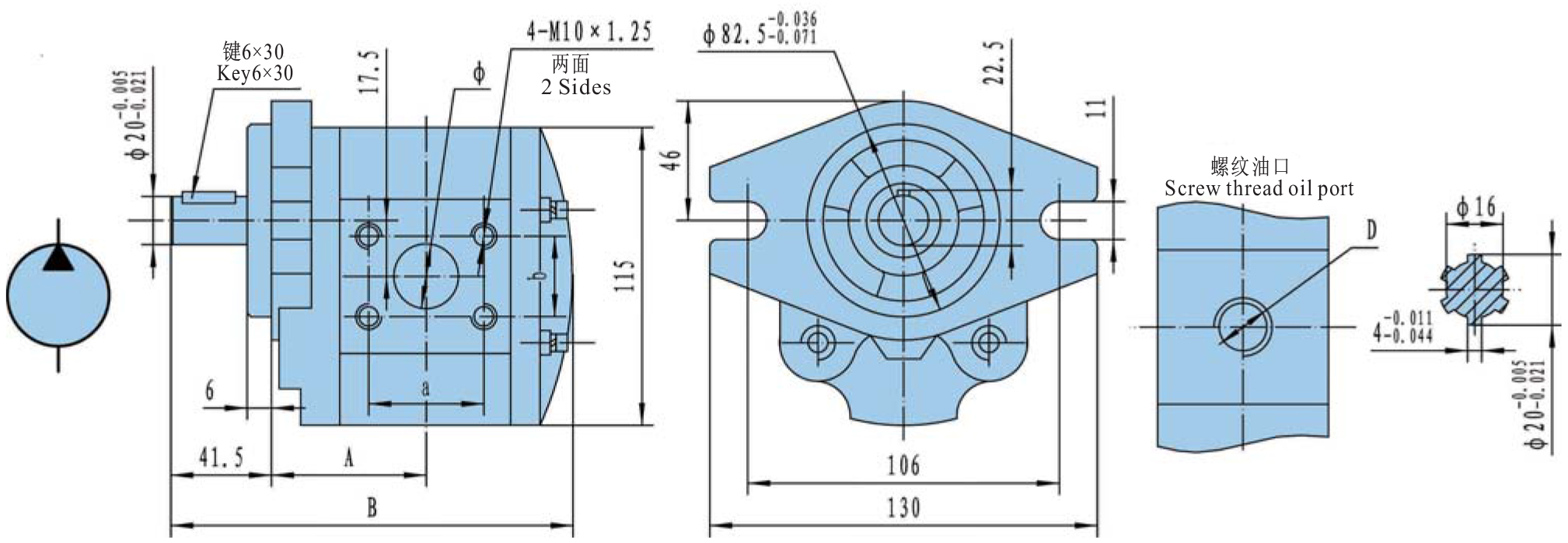

Outline dimensions

Specification

No.	Type	Displacement (L/min)	Pressure(Mpa)		Rotating Speed (r/mm)	Oil Viscosity v50 (Cst)	Oil Pollution (Tag)	Oil Temperature (℃)	Volumetric Efficiency (%)	A (mm)	B (mm)	Threaded Connection		Flange Connection
			Rated	Max								D		Oil Inlet			Oil Outlet
												Oil Inlet	Oil Outlet	φ	A	B	φ	A	B
1	CBTD-G410PF	10	21	24	500～3000	7～70	14/11～19/16	-10～70	92	56.7	154	M33*2	M27*2	23	47.6	22.2	20	47.6	27.2
2	CBTD-G412PF	12	21	24	500～3000	7～70	14/11～19/16	-10～70	92	57.8	165.2	M33*2	M27*2	23	47.6	22.2	20	47.6	27.2
3	CBTD-G414PF	14	21	24	500～3000	7～70	14/11～19/16	-10～70	92	59	158.7	M33*2	M27*2	23	47.6	22.2	20	47.6	27.2
4	CBTD-G416PF	16	21	24	500～3000	7～70	14/11～19/16	-10～70	92	60	160.7	M33*2	M27*2	23	47.6	22.2	20	47.6	27.2
5	CBTD-G420PF	20	21	24	500～3000	7～70	14/11～19/16	-10～70	92	62.3	165.2	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
6	CBTD-G423PF	23	16	21	500～2000	7～70	14/11～19/16	-10～70	92	63.9	168.4	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
7	CBTD-G425PF	25	16	21	500～2000	7～70	14/11～19/16	-10～70	92	65	170.7	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
8	CBTD-G430PF	30	16	21	500～2000	7～70	14/11～19/16	-10～70	92	67.8	176.2	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
9	CBTD-G432PF	32	12	16	500～1450	7～70	14/11～19/16	-10～70	92	69	178.7	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
10	CBTD-G436PF	36	12	16	500～1450	7～70	14/11～19/16	-10～70	92	71.3	183.2	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
11	CBTD-G440PF	40	12	16	500～1450	7～70	14/11～19/16	-10～70	92	73.5	187.7	M33*2	M27*2	26	52.4	26.2	20	47.6	27.2
