Features:Fixed interval reversible pump, high working pressure, small-displacement, small appearancecan supply oil.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools, medical appliances,machine tools, machines.

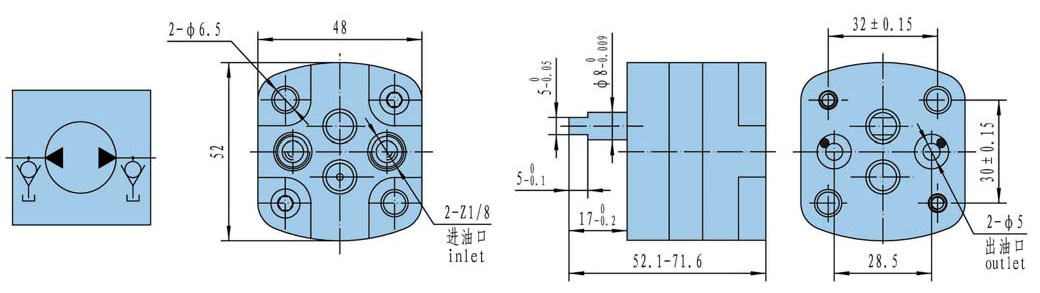

Outline dimensions
Specification
| No. | Type | Displacement (ml/r) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetric Efficiency (%) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||
| 1 | CBT1SV-G0.17 | 0.17 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 65 | 0.65 |
| 2 | CBT1SV-G0.25 | 0.25 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 65 | 0.66 |
| 3 | CBT1SV-G0.45 | 0.45 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 68 | 0.68 |
| 4 | CBT1SV-G0.57 | 0.57 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 68 | 0.7 |
| 5 | CBT1SV-G0.76 | 0.76 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 70 | 0.72 |
| 6 | CBT1SV-G0.98 | 0.98 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 70 | 0.77 |
| 7 | CBT1SV-G1.27 | 1.27 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 72 | 0.8 |
| 8 | CBT1SV-G1.52 | 1.52 | 21 | 28 | 500～4000 | 7～70 | 14/11～19/16 | 72 | 0.82 |
| 9 | CBT1SV-F2.30 | 2.30 | 16 | 21 | 500～3000 | 7～70 | 14/11～19/16 | 74 | 0.85 |
