Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances,machine tools ,machines.

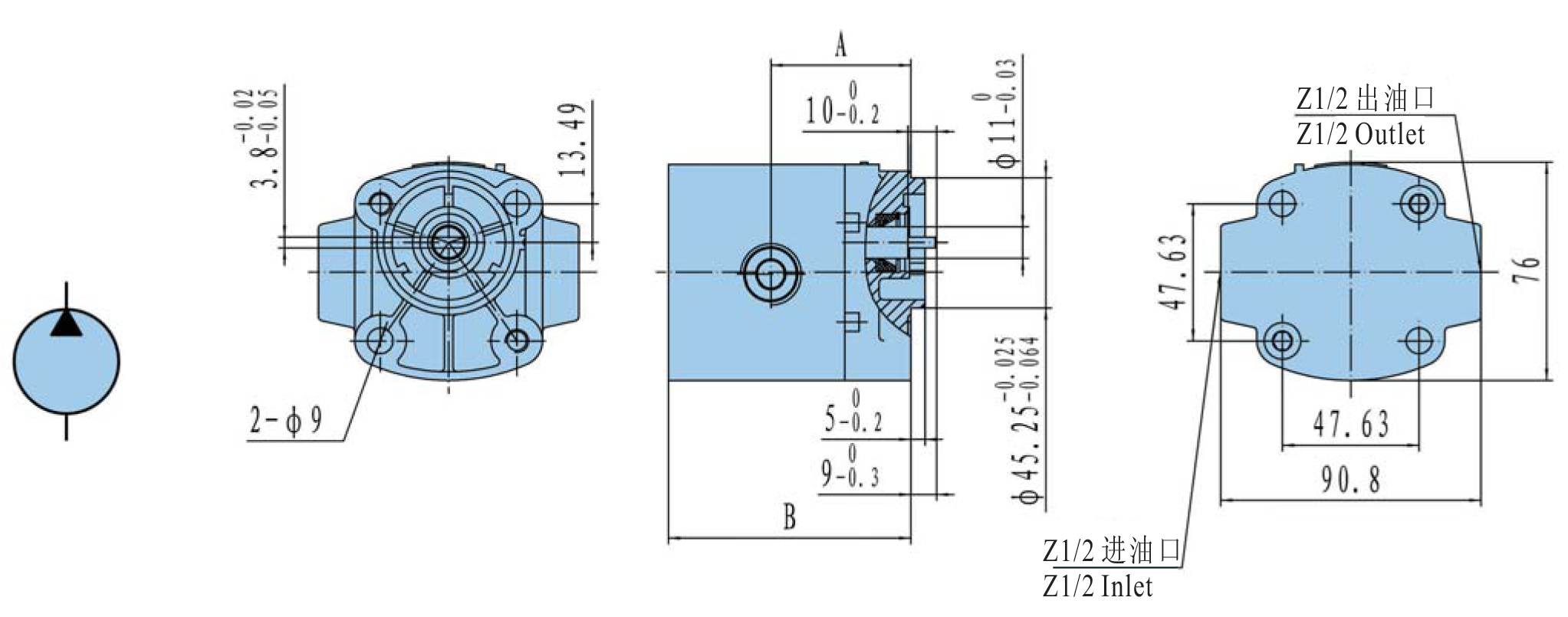

Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | |||||||||
| 1 | CBQZ-G1.5F | 1.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 90 | 45.2 | 77.4 |
| 2 | CBQZ-G1.7F | 1.70 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 90 | 45.6 | 78.2 |
| 3 | CBQZ-G2F | 2.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 46.2 | 79.5 |
| 4 | CBQZ-G2.5F | 2.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 47.25 | 81.5 |
| 5 | CBQZ-G3F | 3.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 48.3 | 83.6 |
| 6 | CBQZ-G3.2F | 3.20 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 48.75 | 84.5 |
| 7 | CBQZ-G3.5F | 3.50 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 49.35 | 85.7 |
| 8 | CBQZ-G4F | 4.00 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 50.4 | 87.8 |
| 9 | CBQZ-G4.2F | 4.20 | 21 | 28 | 500~4000 | 7~70 | 14/11~19/16 | 92 | 50.8 | 88.7 |
| 10 | CBQZ-G4.8F | 4.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 52.05 | 91.2 |
| 11 | CBQZ-G5.8F | 5.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 53.1 | 95.4 |
| 12 | CBQZ-G6.8F | 6.80 | 16 | 21 | 500~3000 | 7~70 | 14/11~19/16 | 92 | 54.15 | 99.6 |
