CBGS1 Reversible Gear Pump

Feature: Fixed interval pump, reversible working, oil relief inside and supply oil.

Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances,machine tools, machines.

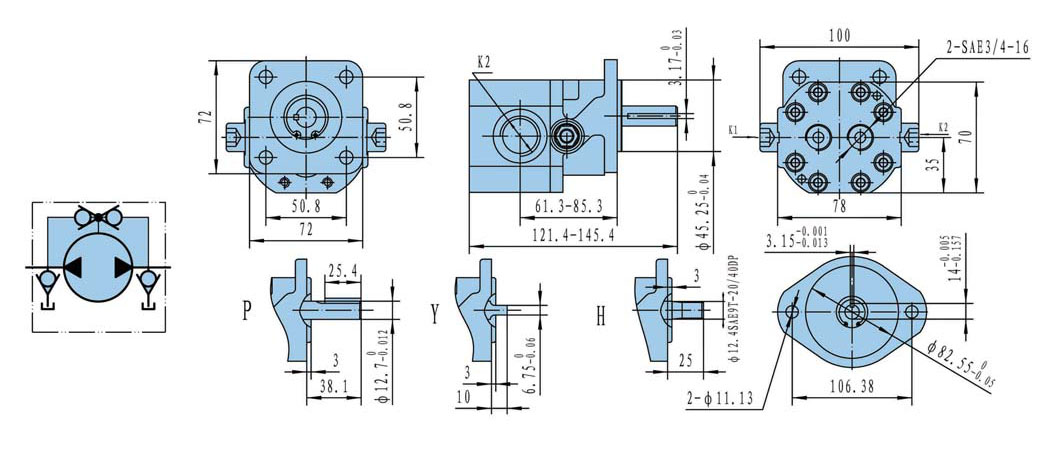

Outline dimensions

Specification

No.	Type	Displacement(ml/r)	Pressure (MPa)		Rotating Speed (r/min)	Oil Viscosity v50 (Cst)	Oil Pollution (Tag)	Oil Temperature (℃)	Volumetic Efficiency (%)	K1 Port Size	K2 Port Size
			Rated	Max
1	CBGS1-G1.1PF	1.10	21	24	500~3000	7~70	14/11~19/16	-10~70	65	SAE9/16-8	SAE9/16-8
2	CBGS1-G1.6PF	1.60	21	24	500~3000	7~70	14/11~19/16	-10~70	65	SAE9/16-8	SAE9/16-8
3	CBGS1-G2.1PF	2.10	21	24	500~3000	7~70	14/11~19/16	-10~70	68	SAE9/16-8	SAE9/16-8
4	CBGS1-G2.6PF	2.60	21	24	500~3000	7~70	14/11~19/16	-10~70	68	SAE3/4-16 (SAE9/16-8)	SAE3/4-16 (SAE9/16-8)
5	CBGS1-G3.2PF	3.20	21	24	500~3000	7~70	14/11~19/16	-10~70	72	SAE3/4-16 (SAE9/16-8)	SAE3/4-16 (SAE9/16-8)
6	CBGS1-F4.2PF	4.20	16	21	500~2000	7~70	14/11~19/16	-10~70	72	SAE3/4-16 (SAE9/16-8)	SAE3/4-16 (SAE9/16-8)
7	CBGS1-F5.2PF	5.20	16	21	500~2000	7~70	14/11~19/16	-10~70	76	SAE7/8-14 (SAE3/4-16)	SAE7/8-14 (SAE3/4-16)
8	CBGS1-F6.4PF	6.40	16	21	500~2000	7~70	14/11~19/16	-10~70	76	SAE7/8-14 (SAE3/4-16)	SAE7/8-14 (SAE3/4-16)
9	CBGS1-F7.4PF	7.40	16	21	500~2000	7~70	14/11~19/16	-10~70	78	SAE7/8-14 (SAE3/4-16)	SAE7/8-14 (SAE3/4-16)
10	CBGS1-E8.5PF	8.50	12	16	500~1450	7~70	14/11~19/16	-10~70	78	SAE7/8-14	SAE7/8-14
11	CBGS1-E9.5PF	9.50	12	16	500~1450	7~70	14/11~19/16	-10~70	80	SAE7/8-14	SAE7/8-14
12	CBGS1-E10.6PF	10.60	12	16	500~1450	7~70	14/11~19/16	-10~70	80	SAE7/8-14	SAE7/8-14
