Features:Fixed interval pump, reversible working, oil relief inside.
Application:Mainly used in hydraulic power unit(minitype), hydraulic tools, medical appliances, machinetools, machines.

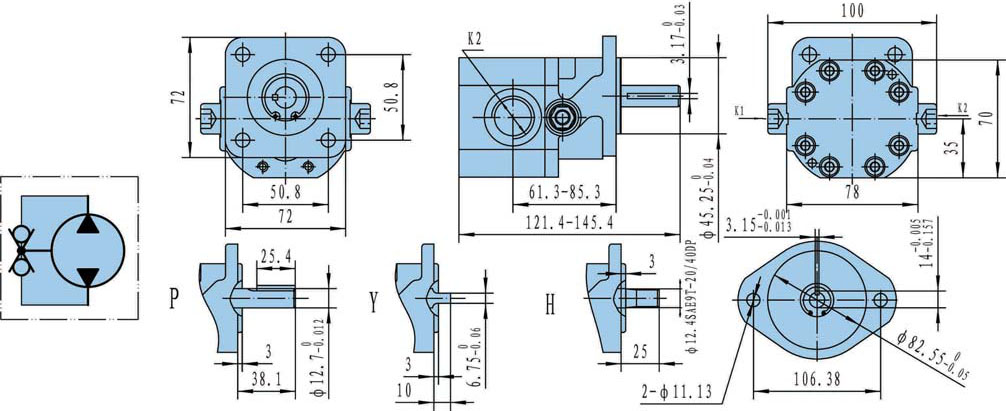

Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | K1 Port Size | K2 Port Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CBGS-G1.1PF | 1.10 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 65 | SAE9/16-8 | SAE9/16-8 |
| 2 | CBGS-G1.6PF | 1.60 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 65 | SAE9/16-8 | SAE9/16-8 |
| 3 | CBGS-G2.1PF | 2.10 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 68 | SAE9/16-8 | SAE9/16-8 |
| 4 | CBGS-G2.6PF | 2.60 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 68 | SAE3/4-16 (SAE9/16-8) |
SAE3/4-16 (SAE9/16-8) |
| 5 | CBGS-G3.2PF | 3.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 72 | SAE3/4-16 (SAE9/16-8) |
SAE3/4-16 (SAE9/16-8) |
| 6 | CBGS-F4.2PF | 4.20 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 72 | SAE3/4-16 (SAE9/16-8) |
SAE3/4-16 (SAE9/16-8) |
| 7 | CBGS-F5.2PF | 5.20 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 76 | SAE7/8-14 (SAE3/4-16) |
SAE7/8-14 (SAE3/4-16) |
| 8 | CBGS-F6.4PF | 6.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 76 | SAE7/8-14 (SAE3/4-16) |
SAE7/8-14 (SAE3/4-16) |
| 9 | CBGS-F7.4PF | 7.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 78 | SAE7/8-14 (SAE3/4-16) |
SAE7/8-14 (SAE3/4-16) |
| 10 | CBGS-E8.5PF | 8.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 78 | SAE7/8-14 | SAE7/8-14 |
| 11 | CBGS-E9.5PF | 9.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 80 | SAE7/8-14 | SAE7/8-14 |
| 12 | CBGS-E10.6PF | 10.60 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 80 | SAE7/8-14 | SAE7/8-14 |
