Features:Pressure compensation pump, high working pressure, small-displacement.
Application:Mainly used in hydraulic power unit(minitype),hydraulic tools ,medical appliances ,machine tools ,machines.

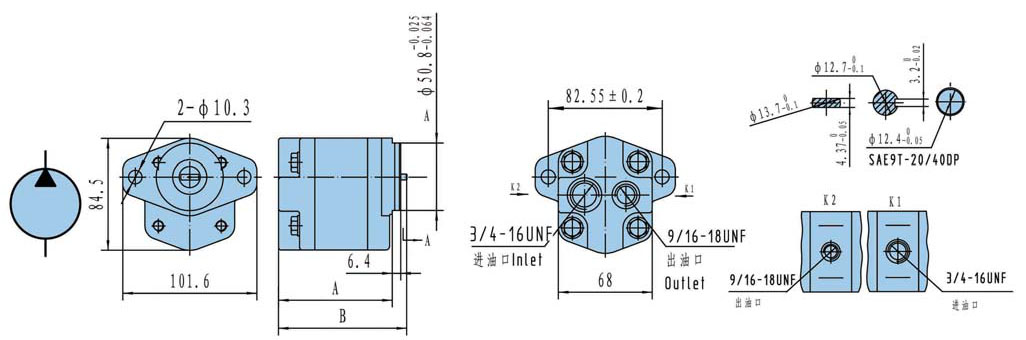

Outline dimensions
Specification
| No. | Type | Displacement(ml/r) | Pressure (MPa) | Rotating Speed (r/min) | Oil Viscosity v50 (Cst) | Oil Pollution (Tag) | Oil Temperature (℃) | Volumetic Efficiency (%) | A (mm) | B (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated | Max | ||||||||||
| 1 | CB1A-G1.2PF | 1.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 79.1 | 90.3 |
| 2 | CB1A-G1.6PF | 1.60 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 80.3 | 91.5 |
| 3 | CB1A-G2.1PF | 2.10 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 81.7 | 92.9 |
| 4 | CB1A-G2.7PF | 2.70 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 83 | 94.2 |
| 5 | CB1A-G3.2PF | 3.20 | 21 | 24 | 500~3000 | 7~70 | 14/11~19/16 | -10~70 | 91 | 84.5 | 95.7 |
| 6 | CB1A-F4PF | 4.00 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 88.5 | 99.7 |
| 7 | CB1A-F5.2PF | 5.20 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 90.5 | 101.7 |
| 8 | CB1A-F6.4PF | 6.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 94.5 | 105.7 |
| 9 | CB1A-F7.4PF | 7.40 | 16 | 21 | 500~2000 | 7~70 | 14/11~19/16 | -10~70 | 92 | 96 | 107.2 |
| 10 | CB1A-E8.5PF | 8.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 100.5 | 111.7 |
| 11 | CB1A-E9.5PF | 9.50 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 103.5 | 114.7 |
| 12 | CB1A-E10.6PF | 10.60 | 12 | 16 | 500~1450 | 7~70 | 14/11~19/16 | -10~70 | 92 | 106.5 | 117.7 |
