Features:Fixed interval pump, low working pressure.
Application:Mainly used in types of pump package, hydraulic tools, medical appliances,machine tools ,machines and so on.

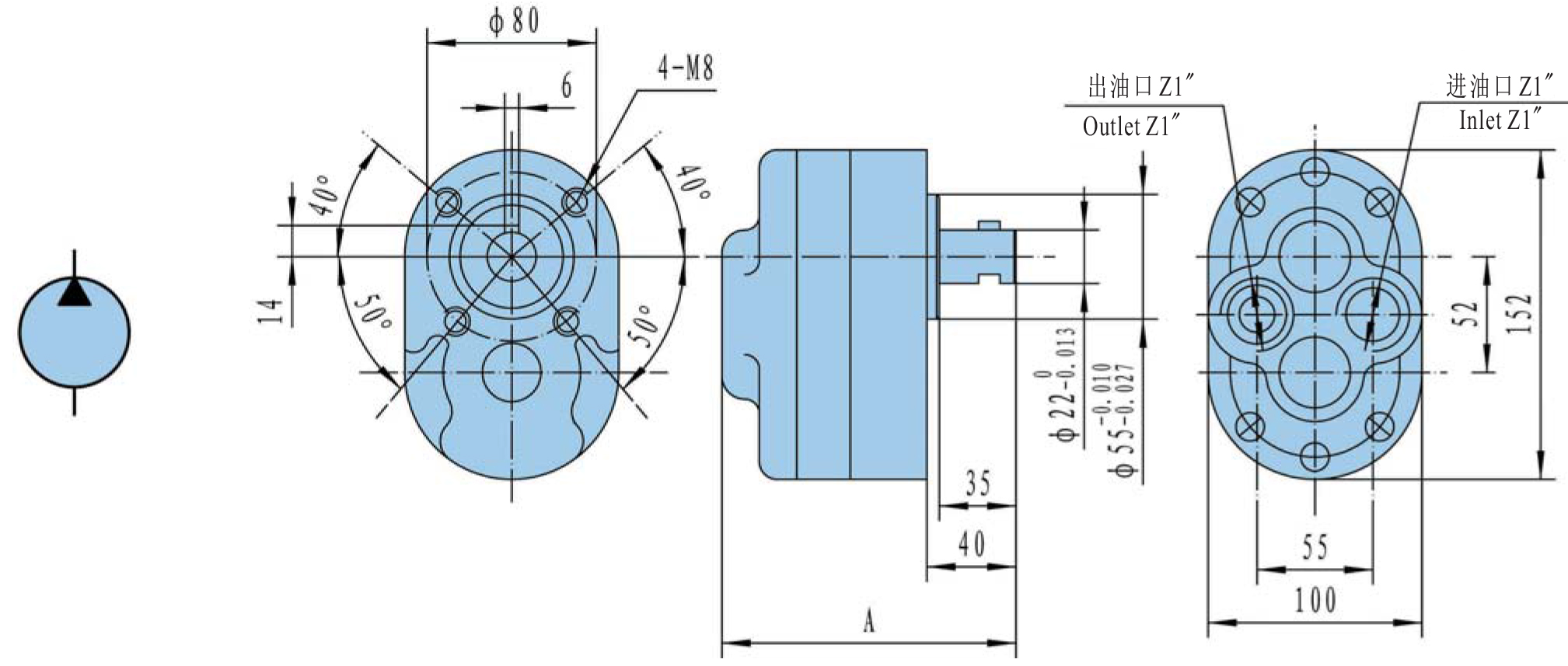

Outline dimensions
Specification
| No. | Type | Displacement (L/min) | Pressure(Mpa) | Rotating Speed (r/mm) | Oil Viscosity v50 (Cst) | Oil Temperature (℃) | Oil Pollution (Tag) | Volumetric Efficiency (%) | A (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CB-B40 | 40 | 2.5 | 1450 | 7～70 | -10～70 | 14/11～19/16 | 90 | 132 |
| 2 | CB-B50 | 50 | 2.5 | 1450 | 7～70 | -10～70 | 14/11～19/16 | 90 | 138 |
| 3 | CB-B63 | 63 | 2.5 | 1450 | 7～70 | -10～70 | 14/11～19/16 | 90 | 144 |
